SYNEGO LIFTING SLIDING DOOR
More views & wider viewing angle
With SYNEGO Lifting sliding door systems, it is now possible to have energy efficiency and a wide viewing angle. Nature friends and sun lovers will enjoy this system. SYNEGO Lifting sliding door systems offer all the usual opening features. Despite their low weight, they provide excellent stability and are very easy to operate.
The version with the view feature provides maximum light penetration and highlights, especially with narrow building frames.
Contact Us to Get an Offer
STRUCTURE DEPTH
80 mm compressed gasket
NUMBER OF CHAMBERS
5 Chambers
THERMAL INSULATION
Uf= 1,3 W/m²K
THEFT SECURITY
Up to resistance class 2 (ENV 1627)
• SOUND INSULATION
up to 43 dB
AIR PERMEABILITY
Class 4 according to EN 12207
Easy Cleaning
HDF-Surface
80 mm Structure depth
5-Compartment-system
Thermal insulation Uf - 1.3 W/m²K
Provides RC2 theft protection according to DIN EN 1627
Up to 43 dB Rw noise isolation
Air permeability: Class 4 according to DIN EN 12207
Rain tightness: Class 9A according to DIN EN 12208
Resistance to wind load: Up to class B3 according to DIN EN 12210
Class 2 continuous function according to DIN EN 12400
Up to 400 kg total wing weight
HDF-Surfaces
Glass thickness up to 51 mm
High-quality sealing for better wearing comfort..
Insulated HDF-surface for unmatched shine and comfort
Landscape version for more light input
Components up to 2.70 m high and 10 m wide can be used
Up to 5 meters passage width
Recyclable, environmentally friendly product
Excellent energy efficiency
Excellent comfort with a variety of application features
New buildings and renovated buildings
Seamless transition from living spaces to the balcony, terrace or garden
Can also be used in winter gardens
Provides all opening features
Offers design diversity with KALEIDO COLOR
Can also be used in winter gardens

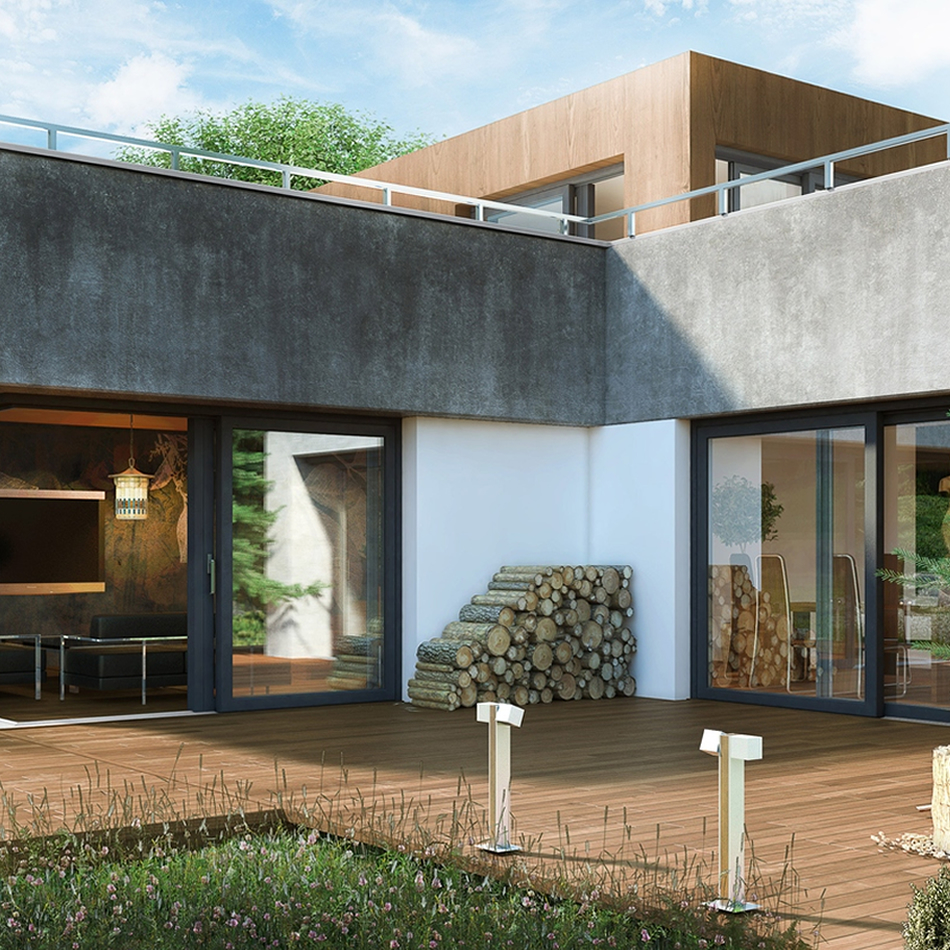

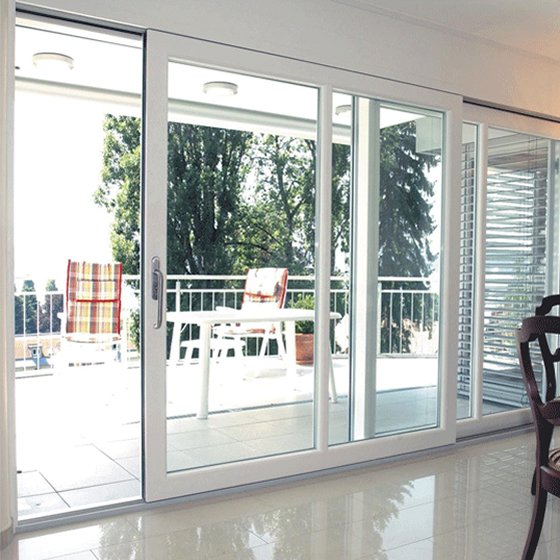

REHAU SYNEGO LIFTING SLIDING DOOR APPLICATION EXAMPLES
