Perfect energy efficiency: Fully equipped window profile made of high-tech RAU-FIPRO® materials.
GENEO is the energetically the best of the window profile systems with a construction depth of 86 mm available on the market globally. The special feature of GENEO lies in the high-tech RAU-FIPRO material.
This is a fiber-compound material which makes the profile very stable. The support sheets required for stability are eliminated in 90% of applications.
Thus, GENEO targets the best thermal insulation values, since the thermal bridges caused by steel are eliminated.
With GENEO, even more than the requirements of the "energy saving regulation (EnEV)" are fulfilled.
PROFILE WIDTH
86 mm compressed gasket
NUMBER OF CHAMBERS
6 Chambers
Energy savings
Up to 76%*
MATAREIAL
RAU-FIPRO with fiber composition
THERMAL INSULATION
Uf= 0,86 W/m²K
Sound insulation
Up to Rw,P = 47 dB without steel support sheet
Burglar-proof
Up to resistance class 3
Air permeability
4 (EN 12207)
Impermeability to heavy rainfall
9A (EN 12208)

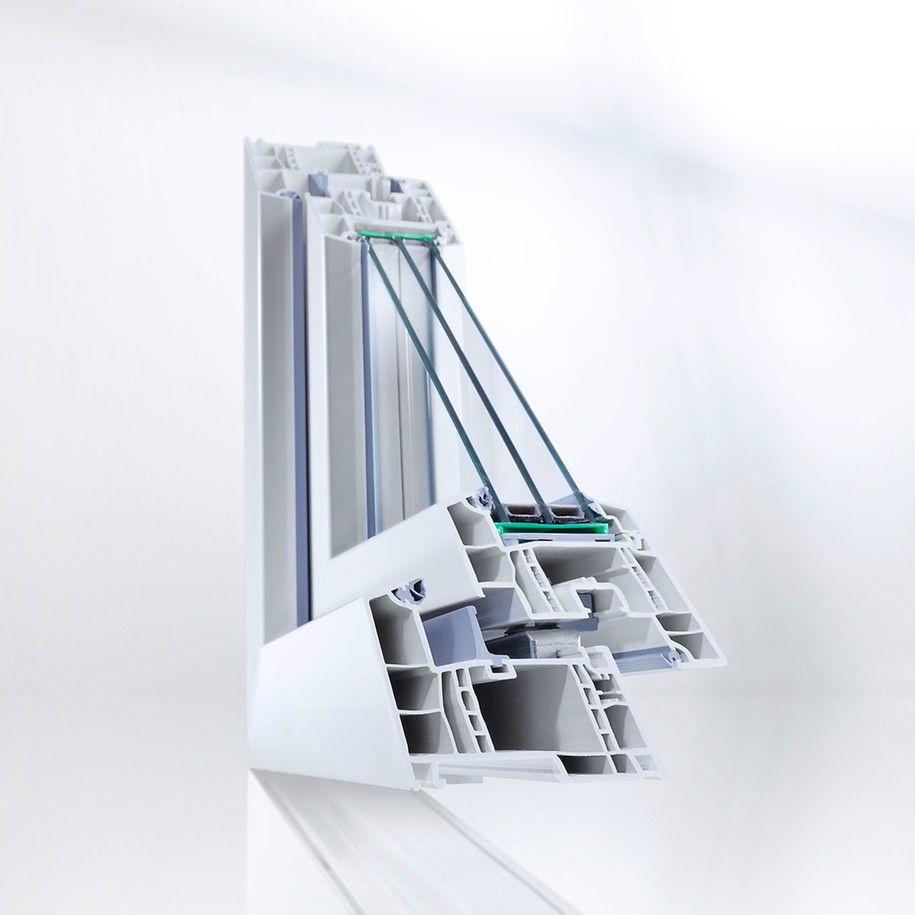

Structure depth: 86 mm / center seal
Number of chambers 6 chambers
Thermal insulation: Uf up to 0.86 W/m²K
• Energy savings: up to 76%*
*From wood/plastic windows of the 80s (Uf = 1.9, Ug = 3.0) to GENEO profiled windows
(Uf = 0.86, Ug = 0.5, window size 123 x 148 cm) reduction of energy loss in the transition
Material: RAU-FIPRO with fiber composition, outer layer coextruded from quality RAU-PVC for highest surface quality
Sound insulation: up to Rw,P = 47 dB without steel support sheet (Rw = 50 dB with glazing)
Burglar-proof: up to resistance class 3, without steel backing sheet up to resistance class 2
Air permeability: 4 (EN 12207)
Impermeability to heavy rainfall: 9A (EN 12208)
Fully supported window system without additional steel support sheet.

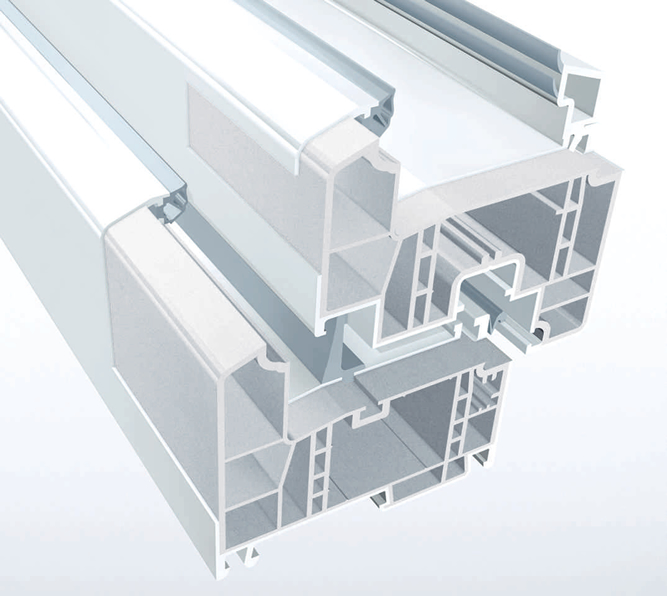

Perfect profile construction thanks to the high-tech RAU-FIPRO material and excellent stability with the "integrated reinforcement system (IVS)"
115 mm seen width for optimum light
Rational storage and production as there is no support sheet
Easier handling and installation thanks to the advantage of up to 40% lighter weight compared to conventional window profile systems

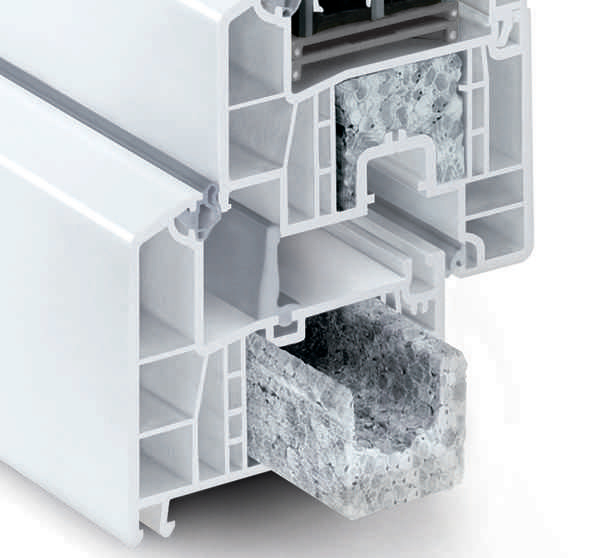

Function chambers for optimizing insulation properties with thermal modules
66 mm wide glass gap for triple insulating glass application
Thanks to the newly developed seal geometry, the force required for closing is reduced and the windows can be opened and closed perceptibly easier
High Definition Finishing surface (HDF): high quality, stylish, extremely smooth and therefore easy to maintain
Environmentally friendly as it is recyclable.
Perfect energy efficiency - with the GENEO family (windows, house doors, lifting sliding doors) you can optimally insulate building facades
Numerous architectural possibilities thanks to special shapes, e.g. oval and triangular windows as well as arched and tiled building shapes are possible for the first time with the support sheet
Wide range of composition possibilities thanks to patterned foil, paint or aluminum cover
Light gray gaskets on white profiles and black gaskets on colored profiles add emphasis
Elegant appearance thanks to 20° arch and 5 mm outer radius
Additional design possibilities thanks to arched sash design
The following accessories and additional products are available for the GENEO system:
Sweat-free corner turn solution: Effectively prevents fungus and condensation (DIN 4108-2)
Solutions for variable corner turns with internal angles of 90° and 90° to 180°
REHAU Comfort-Design plus:

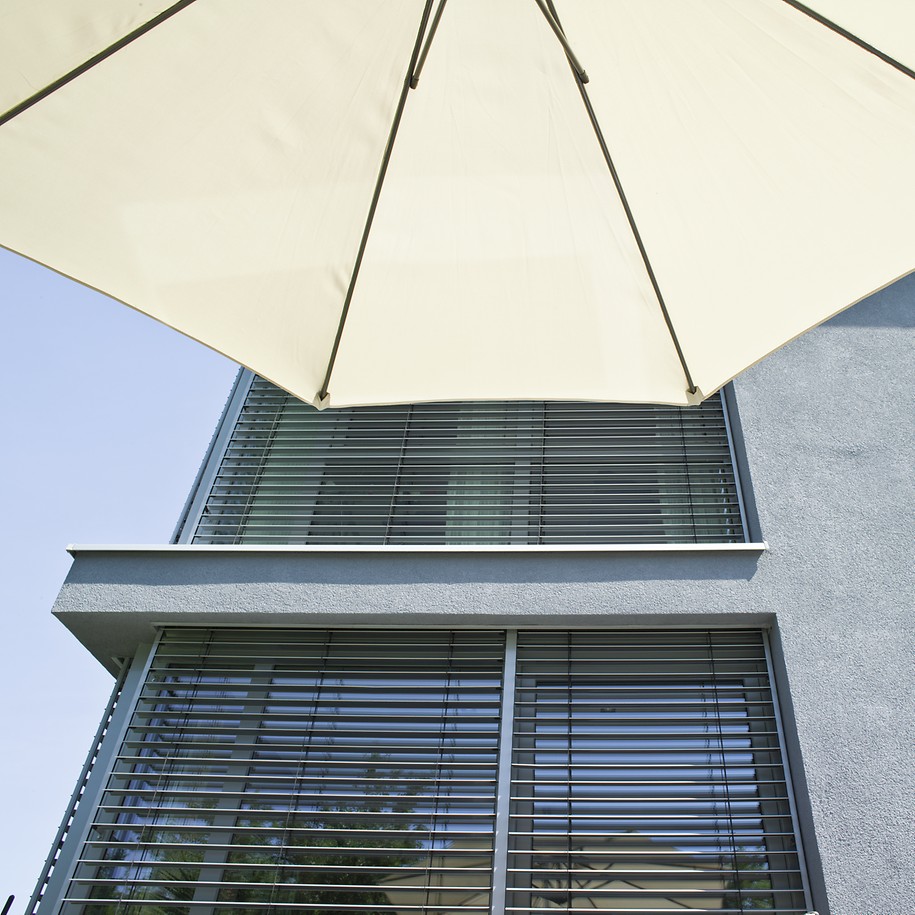

The roller shutter system provides protection against light and visibility from outside. Optional mosquito nets can be installed.

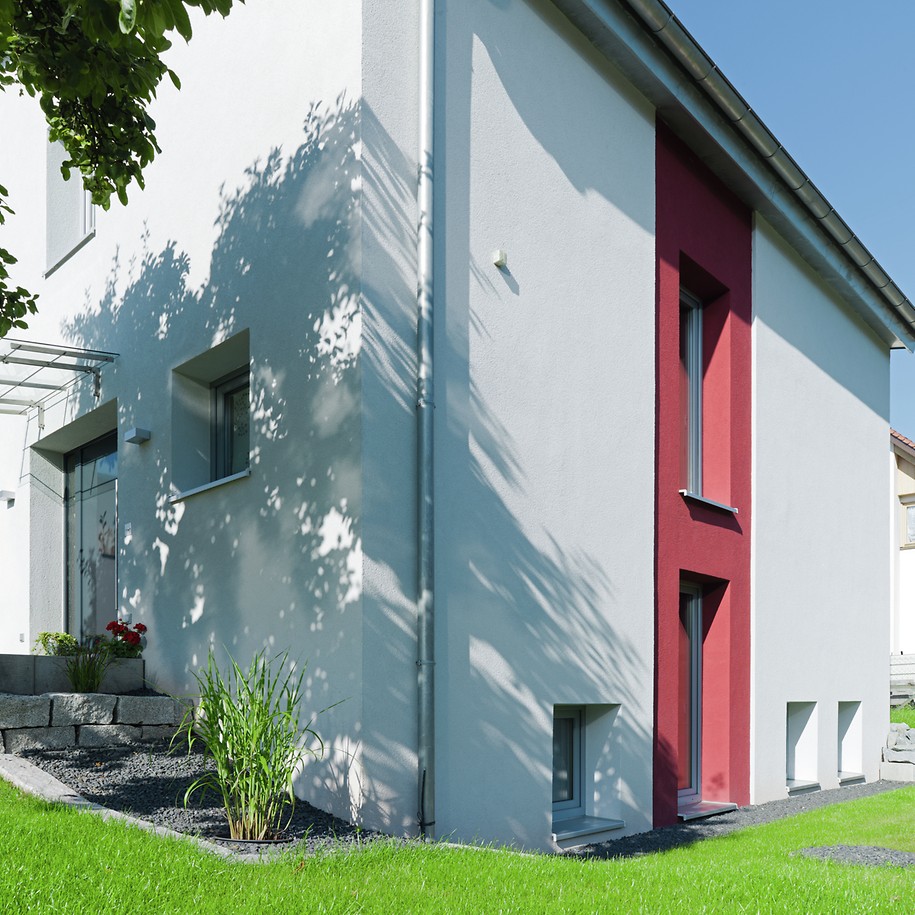

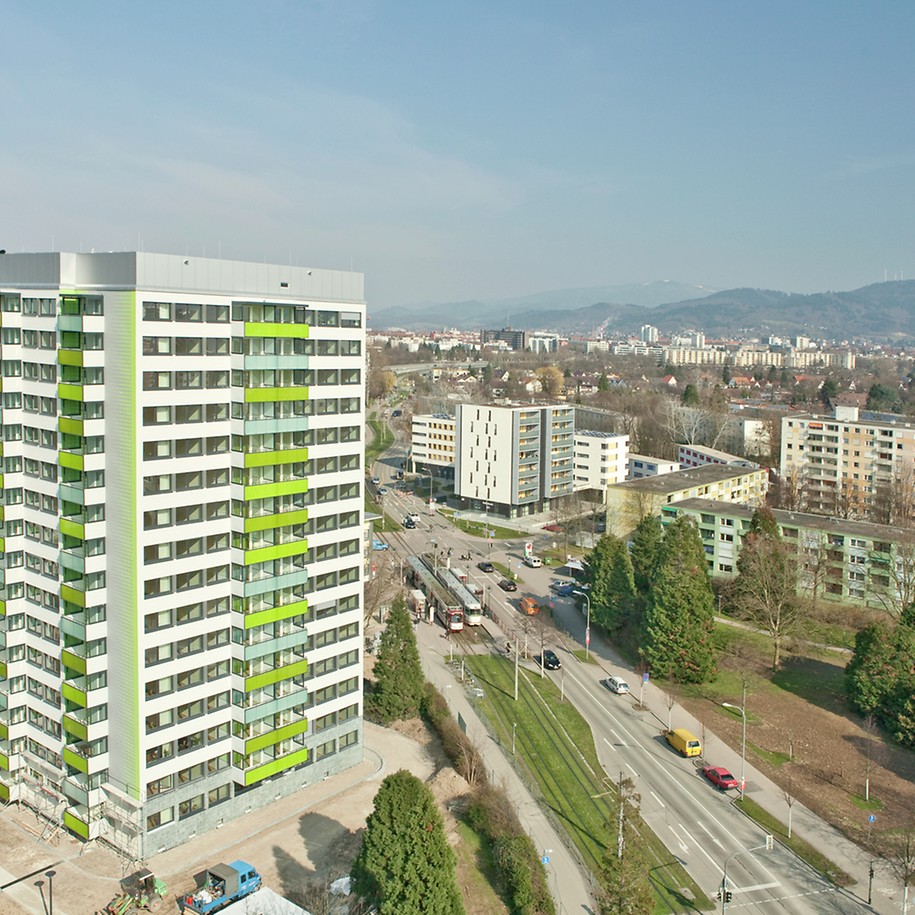

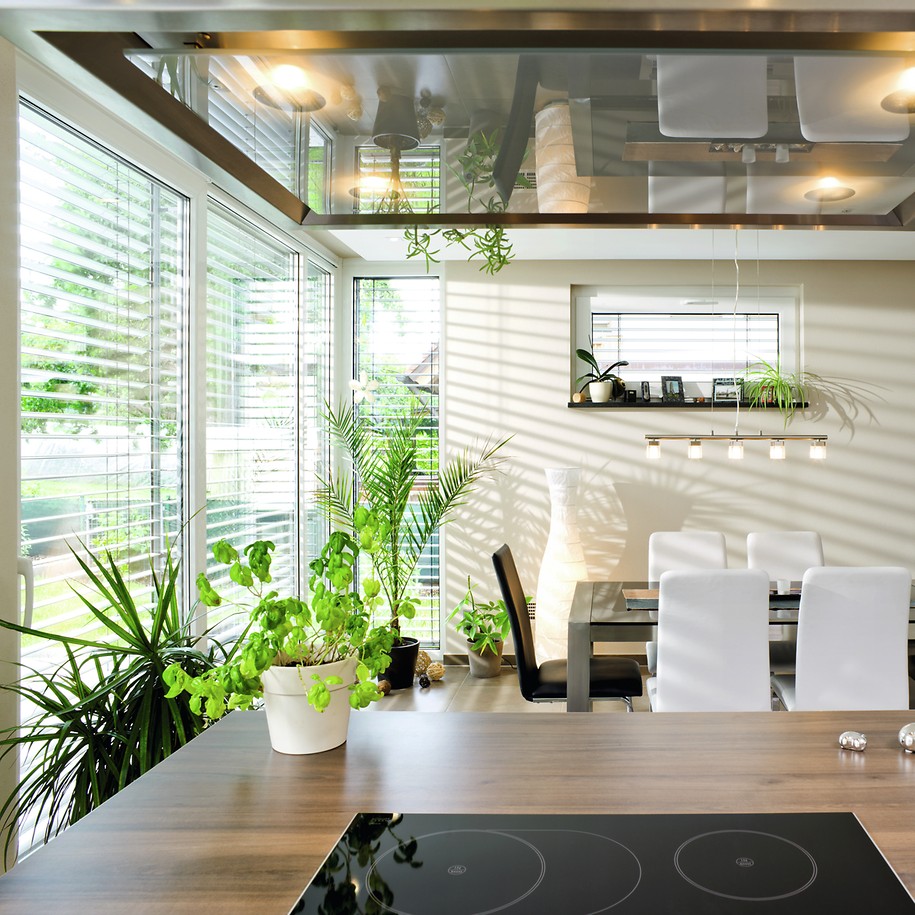

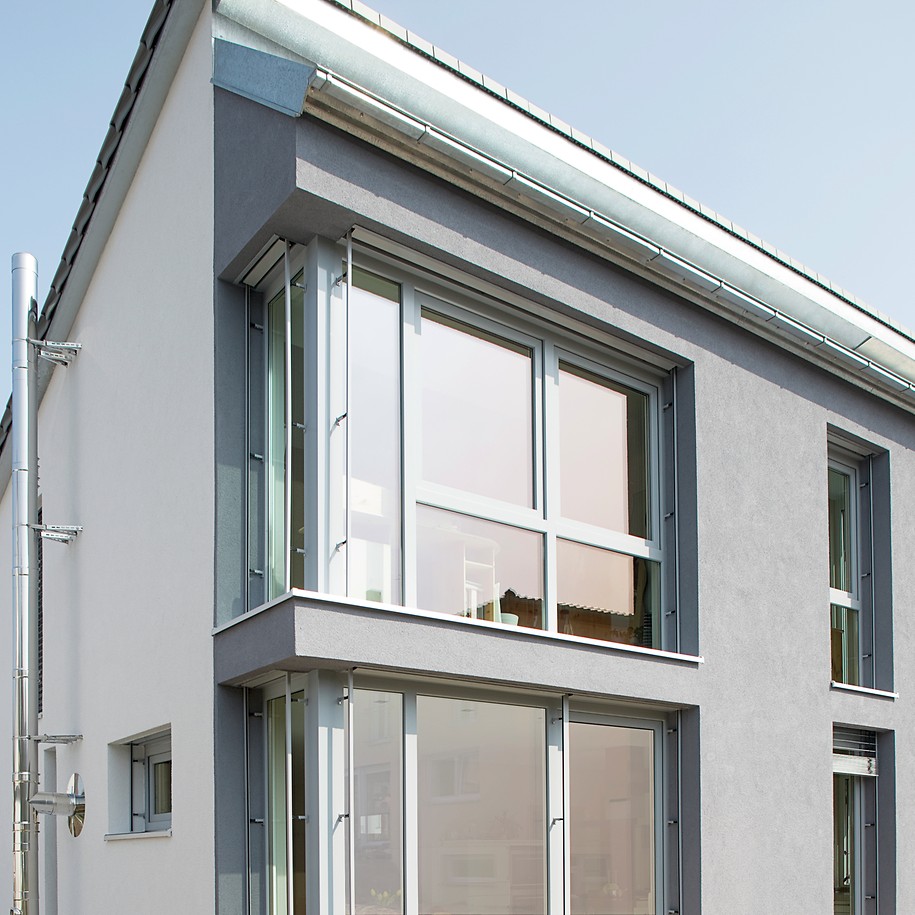

REHAU GENEO APPLICATION EXAMPLES
